RS232 Ultrasonic Level Transmitter PP PVC 0-20m Measuring Range

Name: RS232 Ultrasonic Level Transmitter PP PVC 020m Measuring Range
Brand: Nuoying JIAYE
Price: 150.00 USD

Buy cheap RS232 Ultrasonic Level Transmitter PP PVC 0-20m Measuring Range product

Brand Name : Nuoying JIAYE

Model Number : NYCSUL-503

Certification : Explosion proof certificate

Place of Origin : China

MOQ : 1 set

Price : $150.00-$300.00

Payment Terms : T/T

Supply Ability : 300 sets a month

Delivery Time : 5-8 working days

Packaging Details : 30cm×25cm×20cm

Typical application : Liquid level measurement

Digital Output : RS485,232

Analog Output : 2-wire 4 ~ 20mA / 250Ω load, 4-wire 4 ~ 20mA / 510Ω load

ProbeMaterial : PP/PVC/PTFE/304(optional）

Measuring range : 0-20m

Power supply : 24VDC

Process pressure : -0.02-0.1MPa

Installation size : Thread or flange

Contact Now

4-20MA RS485 Long Distance Ultrasonic Water Level Meter Sensor Transmitter

NYCSUL-503 Ultrasonic Level Transmitter

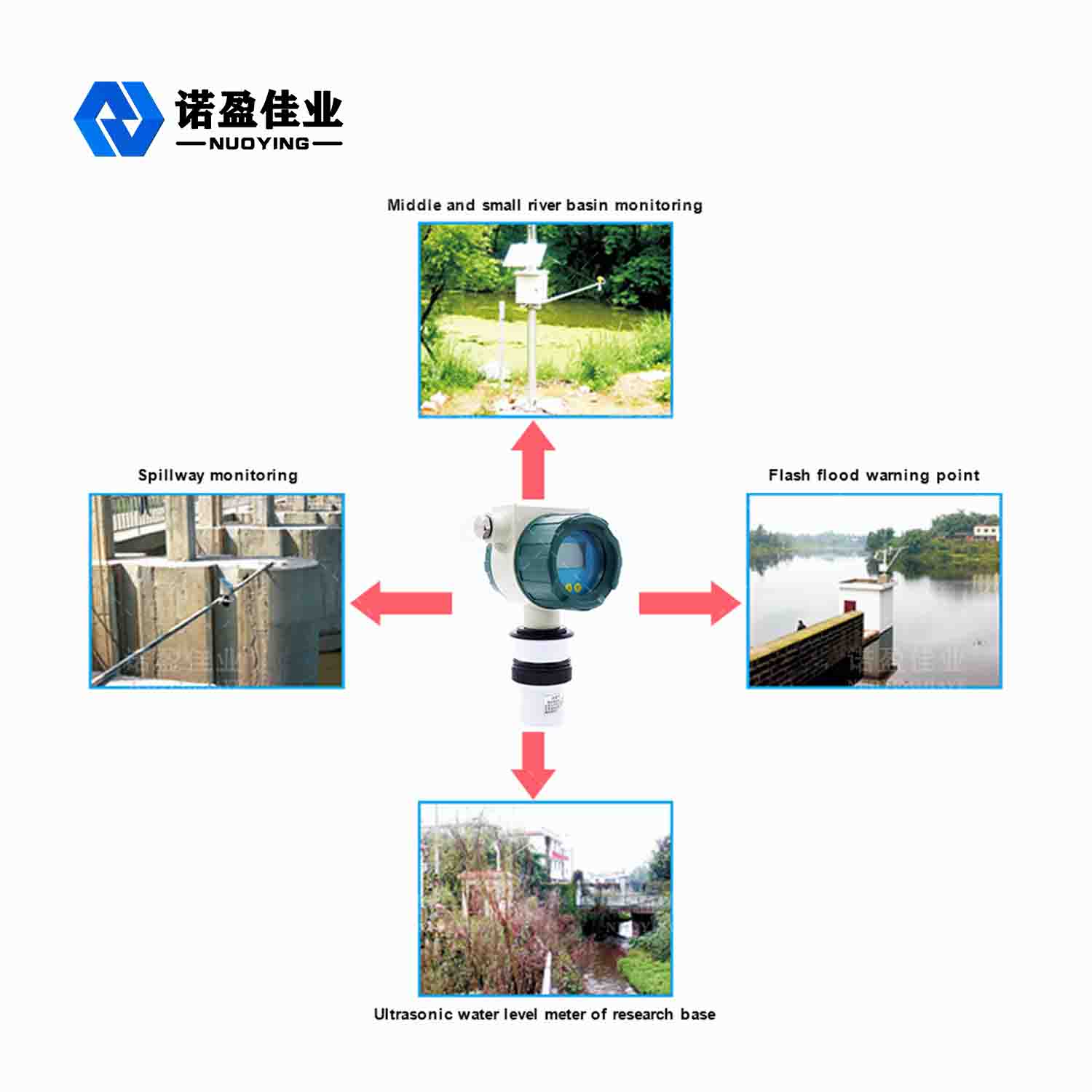

The integrated ultrasonic liquid level gauge is a low-cost measuring device for measuring liquid, slurry and solids on the industrial site. A large number of applications in water treatment, municipal, chemical, machinery manufacturing industries

RS232 Ultrasonic Level Transmitter PP PVC 0-20m Measuring Range

Ultrasonic Level Transmitter Technical Parameters

Features	Integrated
Range	5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m
Measurement Accuracy	0.5%~1.0%
Resolution	3mm or 0.1% (whichever is greater)
Display	Chinese LCD or English LCD
Analog Output	2 wire 4 ~ 20mA / 25Ω load, 4 wire 4 ~ 20mA / 510Ω load
Digital Output	Optional 485, 232
Relay Output	Optional 2 sets of AC 250V / 5A or DC 30V / 5A
Powered	Standard 24VDC, optional 220V AC + 15% 50HZ
Ambient Temperature	Display instrument -20 ~ + 60 ℃, probe -20 ~ + 80 ℃
Protection Class	Display instrument IP65, probe IP68
Probe Cable	No
Installation Size	Thread or flange

Ultrasonic Level Transmitter Installation Guide

The transducer shall be vertical to the medium surface
The equipment shall not be installed in the middle of the tank top
The installation position shall avoid obstacles as much as possible

RS232 Ultrasonic Level Transmitter PP PVC 0-20m Measuring Range
