Remote 5 Meters Non Contact Ultrasonic Water Fuel Tank Level Sensor
Remote 5 Meters Non Contact Ultrasonic Water Fuel Tank Level Sensor Description:
Ultrasonic level measuring instrument, taking the advantages of various many level measuring instruments, is a universal one characterized by total digitalized and humanized design. It has perfect level monitoring, data transmission and man-machine communication.
It is featured by strong anti-interference performance; free setting of upper and lower limits and online output regulation, on-site indication, optional analog, switching value, and RS485 output and easy connection with main unit. The cover, made of waterproof engineering plastics, is small and firm with ABS probe. Therefore, it is applicable for various fields concerning level measuring and monitoring. According to the practical situation, it also can add other modules, such as RS 485, current output; it can be match with PLC better.
Remote 5 Meters Non Contact Ultrasonic Water Fuel Tank Level Sensor Parameters:
| Measuring range | 0~20m | 5meters | 0~30m | lm;2m |
| Blind zone | 0.25~2m | 0.4 | 0.3~2m | 0.06-0.15 |
| Angle | <10° | <12° | <12° | <6° |
| Accuracy | ±0.25%RS | ±0.3%F.S | ±0.3%F.S | <1.5mm |
| Display | LED,LCD,OLED | None | LCD | LED;OLED |
| Output | 4-20mA;Relay | 4-20mA;Relay | 4-20mA; Relay ;0-5v;0-10v | 0-20mA;4-20mA;Relay |
| RS485;0-10v | RS485;0-10v;hart | RS485;HART;USB | RS485;0-5V;0-10V |
| Power supply | DC12-28V;220V | DC12-24V(3 wires) | AC220V or 24VDC | DC12-24V |
| Material | ABS Plastic | ABS plastic | ABS Material or Aluminium | ABS;SS material |
| Connector | Thread or flange | M60*2 Thread | Thread or flange | Thread |
| Protection | IP65 | IP65 | IP65 | IP65 |
| Explosion proof | EXiall BT4Gb | EXiall BT4Gb | EXiall BT4Gb | EXiall BT4Gb |
Remote 5 Meters Non Contact Ultrasonic Water Fuel Tank Level Sensor Features:
Widely Applications of level sensor
The water tank level sensor's measuring can not be influenced by foam,power,steam and etc...
Various Type for Various Conditions
The level sensor with Two-wires,Three-wires,Split type and Without display type and etc...for you reference...
Applications of water level sensor
The well depth,Power station,Stirred tank,Sewage tank,Biogas tank,Swinning pool and more...
Various Output of non-contact water level sensor
The 4~20mA,Hart,RS485,0-5C;0-10V for you reference.

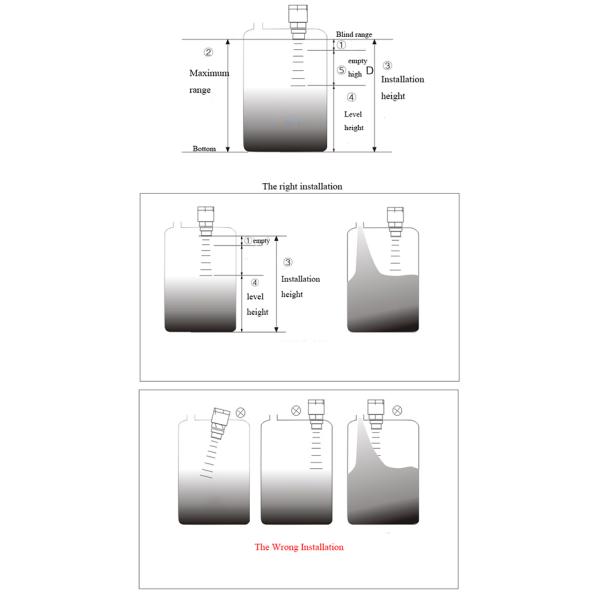

Remote 5 Meters Non Contact Ultrasonic Water Fuel Tank Level Sensor Installation:
1.Sensor should be placed where there is no obstacle between emission surface and measured liquid,it also should be far away from feeding throats;
2.Tank shape should be considered.some type of container will bring second echo,expecially conical and spherical tank,a good installation place will solve the problem;
3.Ultrasonic level meter can be installed by flange or thread,whatever installation way,make sure the sensor bottom through the installation hole or flange.
4.If the liquid to be measured has sewage,a float impurities or flunctuation .use a wave guide and the diameter of the waveguide should over 120mm.
